Description

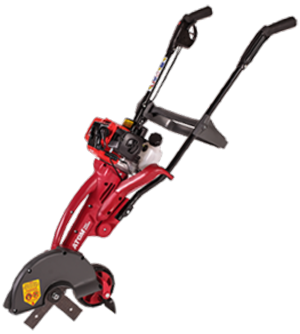

48cc Mitsubishi high performance. Low emission engine. Full anti-vibration handle system.

• Engine: Japanese TLE-48 Mitsubishi 2-Stroke engine 48cc. Certified to meet Euro 5 emission requirements
• Max power rating: 1.8kw (2.4hp)
• Fuel: unleaded petrol – oil mix 50:1
• Cutting blades: Exclusive 4-bladed hardened spring steel long life system 271mm (10 ²/₃”) long
• Max edging depth garden plots: 75mm (3”)
• Wheel: Very manoeuvrable commercial rubber tyre wheel with premium sealed ball bearings
• Gear box reduction: 3.54:1 heavy duty hardened precision cut steel spiral bevel gears
• Power Drive: Solid precision 12mm diameter shafts with 7 sealed ball bearings (no belts)
• Positive 6 position wheel height adjustment arm with wear proof rubber bushings
• Clutch system: Automatic centrifugal clutch
• Weight: 9kg (20lbs).

1. Trigger switch control with safety interlock.
2. Strong steel tube handle bars with anti-vibration system.
3. 33cc Mitsubishi 2-Stroke full crank commercial Japanese engine.
4. Heavy duty automatic safety clutch with padded clutch shoes.
5. Easy lifting carrying handle.
6. Positive 6 position height adjustment.
7. Edge Guide.
8. Exclusive 4-blade cutting system. Longest 271mm (10 ²/₃”)
   hardened steel blades for smoother operation, longer life and
   neater cutting.
9. Constant height spring return pivoting debris deflector.
10. Very manoeuvrable long lasting commercial large 150mm (6”)
    rubber tyre wheel with premium sealed ball bearings.
11. Fully enclosed blades guard.
12. Reinforced high strength Polyamid casing which can withstand
    680 kgs (1500 lbs) of weight.
13. Cross brace for extra stability.
14. Comfortable air cushion bio-rubber handle grips.
15. Operator Comfort seven point inbuilt anti-vibration handle system
    for continuous long machine use. Some operators edge up to 8kms
    (5 miles) per day.
